EV EXPERT charging cable TYPE 2 | 32A | 3phase | 22kW | 5 - 8 m

EV EXPERT charging cable TYPE 2 | 32A | 3phase | 22kW | 5 - 8 m

Valoración del producto: 5/5 (7x)

Su calificación:

NUEVO

High quality EV charging cable Type2 - Type2 with 7,4kW which excels in light weight and great flexibility in cold weather. This cable has locking option for U-lock and protective rubber caps for connectors. Made from better TPU materials with TUV certificate.  FREE carry bag & FREE shipping to most EU

Variante de productos

  • 237,15 € con el IVA

    195,99 €

    255 € con el IVA Descuento 7%

  • 255,75 € con el IVA

    211,36 €

    275 € con el IVA Descuento 7%

237,15 € con el IVA

195,99 €

255 € con el IVA Descuento 7%

Fabricante: EV Expert

Product question

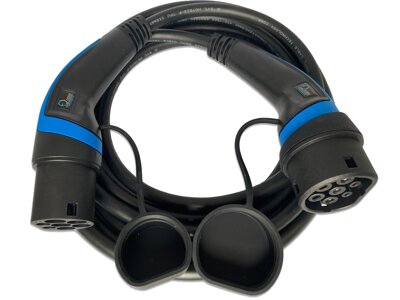

Top quality EV charging cable Type 2 - Type 2 (IEC 62196-2) with Vehicle Connector and Infrastructure Plug, with protective caps, 16-32 A / 230-480 V (AC).

Product definition

  • Standards/regulations: IEC 62196-2
  • Charging standard: Type 2
  • Charging mode: Mode 3, Case B
  • Type of charging current: AC 3-phase

 Ambient conditions

  • Ambient temperature (operation) -30 °C ... 50 °C
  • Ambient temperature (storage/transport) -40 °C ... 80 °C
  • Max. altitude 5000 m (above sea level)
  • Degree of protection IP44 (plugged in)
  • Degree of protection IP54 (Protective cap)

Electrical properties

  • Maximum charging power 22kW
  • Number of phases 3
  • Number of power contacts 5 (L1, L2, L3, N, PE)
  • Rated current of power contacts 32 A
  • Rated voltage for power contacts 480 V AC
  • Number of signal contacts 2 (CP, PP)
  • Rated current for signal contacts 2 A
  • Rated voltage for signal contacts 30 V AC
  • Type of signal transmission Pulse width modulation
  • Resistor coding 220 Ω (between PE and PP)

Mechanical properties

  • Insertion/withdrawal cycles > 10000
  • Insertion force < 100 N
  • Withdrawal force < 100 N

Design

  • Housing color black
  • Pin connector pattern color black
  • Color handle area blue
  • Color protective cap black
  • Customer variations On request

Material

  • Housing material Plastic
  • Material connection profile Plastic
  • Material handle area Soft plastic
  • Material protective cap Soft plastic
  • Material surface of contacts Ag

Cable

  • Cable structure 5 x 6.0 mm² + 2 x 0.5 mm² (prEN 50620, VDE Reg. 8789 class 5)
  • External cable diameter 17 mm ±0.4 mm
  • Type of conductor straight
  • Outer sheath, material TPE-U
  • External sheath, color black
  • Minimum bending radius 255 mm (15 x diameter)

Suitable for these electro vehicles

Audi A3 & Q7 e-tron, BMW 225e & 328e & 330e & 530e, BMW i3 & i8, BMW X5 40e, BYD e6, Hyundai Ioniq & Kona Electric & PHEV, Jaguar I-Pace, Kia Niro EV, Mercedes B Class Electric & C350e PHEV & GLE 500e & S500 & S550 PHEV & SLS EV & Vito E-Cell, New Nissan Leaf 2018, Porsche Cayenne S E-HYBRID & Panamera S PHEV, Renault Zoe, Skoda e-citigo, Smart Electric Drive, Tesla Model S & X & 3, Toyota Prius Plug-in, Volvo S90 T8 & V60 & XC90 PHEV, Volkswagen e-Golf & Golf GTE & e-up

Fuerza: 22 kW
Numero de fases: 3
Amperio: 32A
