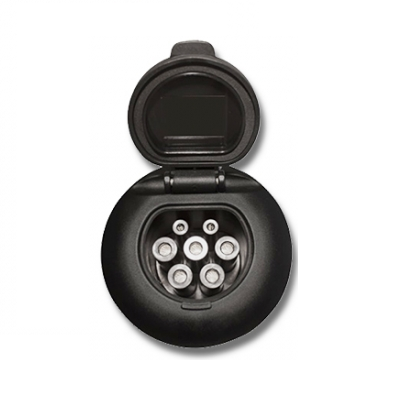

Toma de carga EV TIPO 2 hembra 32A | 22kW - Fijación en 3 puntos

Toma de carga EV TIPO 2 hembra 32A | 22kW - Fijación en 3 puntos

Valoración del producto: 5/5 (6x)

Su calificación:

NUEVO

The female type 2 charging socket is made of high-quality thermoplastic with a UL94 V-0 flammability insulator. It allows charging with 32A current with a total charging power of 22kW. The socket meets all the requirements prescribed by the test and certificate for JDQ 53.3 electronic devices.

Variante de productos

  • 89,30 € con el IVA

    73,80 €

    94 € con el IVA Descuento 5%

  • 119,19 € con el IVA

    98,50 €

    125,46 € con el IVA Descuento 5%

89,30 € con el IVA

73,80 €

94 € con el IVA Descuento 5%

Fabricante: Duosida

Product question

The 32A female type 2 charging socket is equipped with an IP54-certified cover, which provides protection against dust and against the ingress of water splashing from all sides. When connected, the socket protection is also at the IP54 level. The socket is equipped with a water drain and is ready for 3-point fastening, the end of the screw is of the wireable type.

It is equipped with resistance sensors that can monitor the temperature very accurately. If the temperature rises above a safe limit, the charging power is automatically reduced or completely disconnected.

The charging socket meets all the requirements prescribed by the test and certificate for JDQ 53.3 electronic devices, which guarantees its resistance to vibration, moisture, dust and salt spray. It is equipped with a flammability isolator approved by the UL94 V-0 certificate, which can stop the spread of flame within 10 seconds.

Technical Specifications

  • Female type 2 socket (IEC 62196-2)
  • Maximum current: 32A
  • Maximum voltage: 250 V
  • Maximum charging power: 22 kW
  • Operating temperature range: -30 ° C to + 50 ° C
  • 3 point mounting
  • Material: thermoplastic
  • Black colour

Security and certificates

All sockets are tested to ensure their safety. The protective cover and the socket in the connected state are protected at the IP54 level. The socket meets the international standards SAE J1772. It is certified with CE, TUV and UL 94 for use in the European Union. It is certified for the requirements of JDQ 53.3.

The socket is provided with a standard 24-month warranty.
